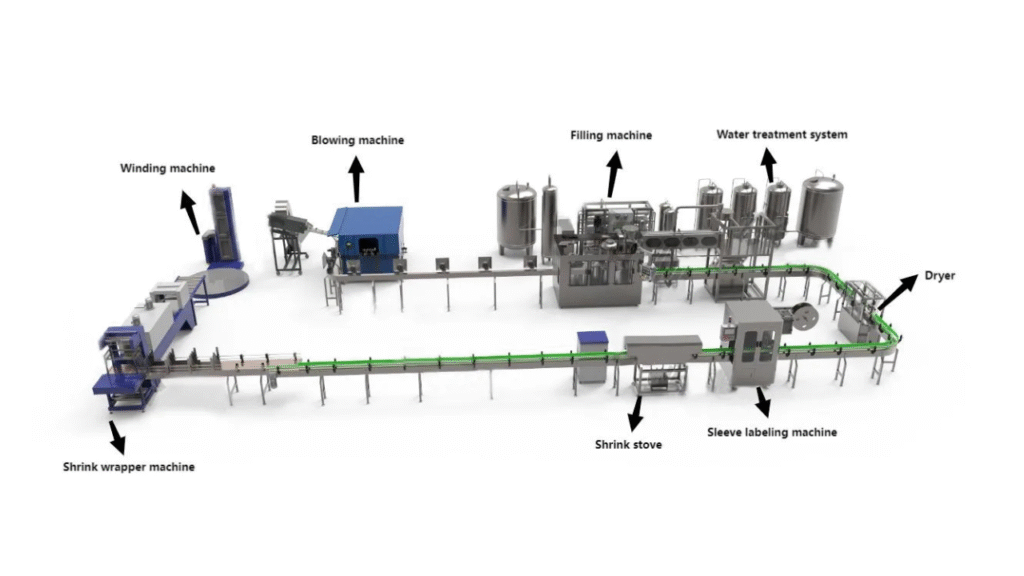

Water Filling Production Line:
Fully automated rinsing, filling, and capping system
Customizable capacity to suit small to large operations
Built from stainless steel for hygiene and durability
Touchscreen interface for easy control and monitoring
Smooth bottle handling with anti-drop technology
Integrated with conveyor belts and bottle unscrambler
Ideal for mineral, purified, or flavored water production
Technical Specifications
| Parameter | Specification |
|---|---|
| Production Capacity | 2000 – 20,000 bottles/hour |
| Bottle Volume Range | 200ml – 2L |
| Bottle Material | PET / Glass |
| Filling Method | Gravity / Pressure filling |
| Filling Accuracy | ±1% |
| Rinsing Stations | 8 – 32 heads (customizable) |
| Capping Stations | 3 – 10 heads (customizable) |
| Control System | PLC with HMI Interface |
| Conveyor Speed | Adjustable via frequency converter |
| Material | SS304/316 food-grade contact parts |
| Power Supply | 380V/220V, 50Hz |
| Air Requirement | 0.6 – 0.8 MPa |
