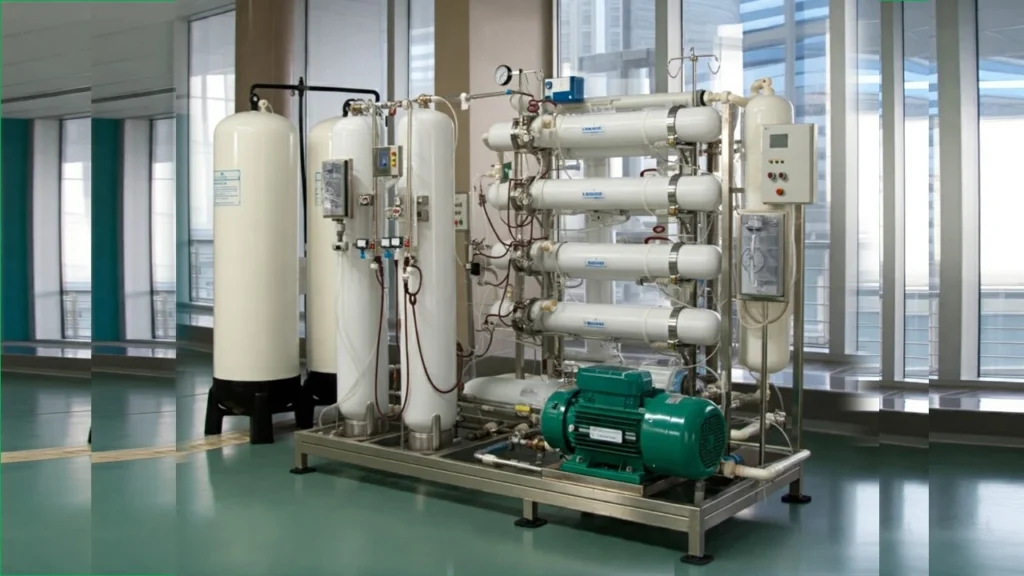

RO Plant 1000 LPH:
Industrial-Grade Stainless Steel Structure
Efficient RO Membrane Filtration
Built-in TDS Monitoring and Control
Multi-Stage Pretreatment System
Easy-to-Use Automatic Control Panel
Energy-Efficient Operation
Suitable for Pharma, Food & Beverage, and Commercial Use
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | 1000 Liters Per Hour |
| Feed Water Requirement | TDS < 2000 ppm |
| Recovery Rate | 60% – 70% |
| RO Membranes | 4 pcs (4040 Type) |
| Pump Type | High Pressure Stainless Steel Pump |
| Pretreatment | Sand Filter + Carbon Filter + Micron |
| Filtration Accuracy | Up to 5 Microns |
| Membrane Brand | Hydranautics / Dow (optional) |
| Frame Material | SS304 Stainless Steel |
| Control Panel | Automatic with TDS Monitor |
| Power Supply | 220V / 50Hz |
| Operating Pressure | 150 – 250 psi |
| Dimensions (Approx.) | 2000 x 800 x 1800 mm |
