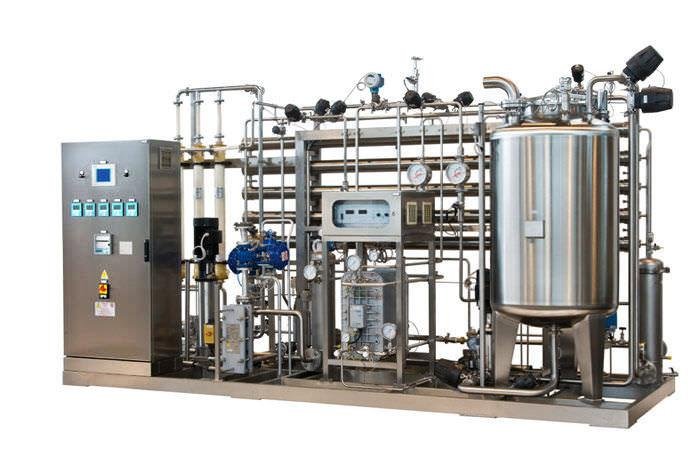

DI Water Plant:
High-Purity Water Output for Critical Applications
Efficient Ion Exchange Resin System
Stainless Steel Construction for Hygienic Operation
Consistent Output with Minimal Downtime
Optional Automatic Control and Monitoring
Suitable for Laboratories, Electronics & Pharma Use
Compact and Maintenance-Friendly Design
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | 500 – 2000 Liters Per Hour (Customizable) |
| Water Purity | Up to 18.2 MΩ-cm resistivity |
| Inlet Water Requirement | TDS < 250 ppm |
| Ion Exchange System | Mixed Bed / Dual Bed Resin System |
| Output Conductivity | < 1 µS/cm |
| pH Range | 6.5 – 7.5 |
| Flow Control | Manual or Automatic |
| Resin Type | Cation and Anion Exchange |
| Frame Material | SS304 Stainless Steel |
| Control Panel | Digital or PLC Based (optional) |
| Power Supply | 220V / 50Hz |
| Dimensions (Approx.) | Based on capacity |
